구분 OMRON 제품코드
제품명 싱글 빔 세이프티 센서 E3ZS／E3FS
상품설명



Lineup







Specifications




Dimensions
Sensors

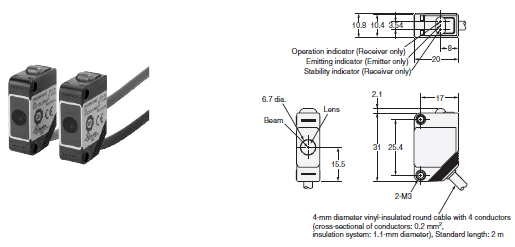

Pre-wired Cable with ABS Resin Case
E3ZS-T81A
E3ZS

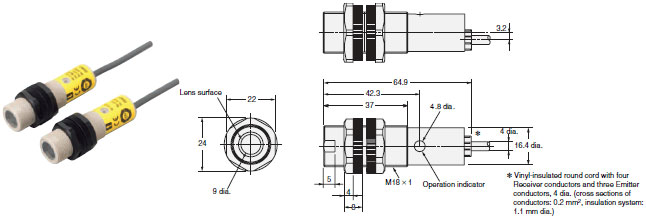

Pre-wired Cable with ABS Resin Case
E3FS-10B4 2M
E3FS
* Vinyl-insulated round cord with four Receiver conductors and three Emitter conductors, 4 dia. (cross sections of conductors: 0.2 mm2, insulation system: 1.1 mm dia.)
Connector with Metal Case
E3FS-10B4-M1-M
E3FS
Safety Controller
F3SX
For details, refer to F3SX.
Accessories (Optional)
Branch Connector
F39-CN3
F39
* The molded part B of the Connector is black.
Dummy Plug
F39-CN4

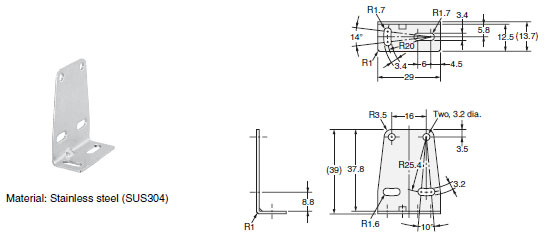

Sensor Mounting Bracket (for E3FS)
Y92E-B18
F39
Y92E
Sensor Mounting Bracket (for E3ZS)
E39-L104
E39

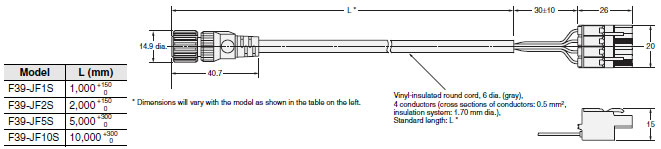

Cables with Connectors on Both Ends for Branch Connection
F39-JF1S
F39-JF2S
F39-JF5S
F39-JF10S
F39

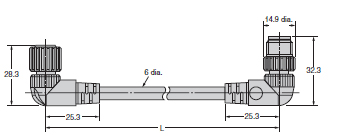

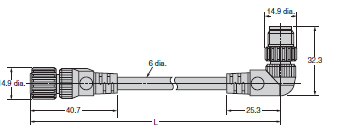

Cables with Connectors (Socket and Plug) on Both Ends
XS2W-D421-C81-A (L=1m)
XS2W-D421-D81-A (L=2m)
XS2W-D421-G81-A (L=5m)
XS2W-D421-J81-A (L=10m)
XS2W-D421-C81-R (L=1m)
XS2W-D421-D81-R (L=2m)
XS2W-D421-G81-R (L=5m)
XS2W-D421-J81-R (L=10m)
XS2W
XS2W-D422-D81-A (L=2m)
XS2W-D422-G81-A (L=5m)
XS2W
XS2W-D423-D81-A (L=2m)
XS2W-D423-G81-A (L=5m)
XS2W
XS2W-D424-D81-A (L=2m)
XS2W-D424-G81-A (L=5m)
XS2W

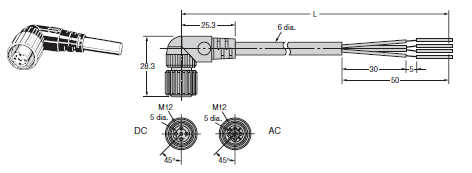

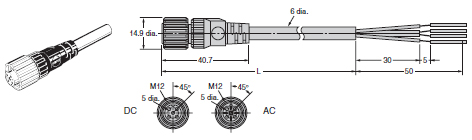

Cables with Connector (Socket) on One End
XS2F-D421-C80-A (L=1m)
XS2F-D421-D80-A (L=2m)
XS2F-D421-G80-A (L=5m)
XS2F-D421-J80-A (L=10m)
XS2F-D421-C80-R (L=1m)
XS2F-D421-D80-R (L=2m)
XS2F-D421-G80-R (L=5m)
XS2F-D421-J80-R (L=10m)
XS2F
XS2F-D422-C80-A (L=1m)
XS2F-D422-D80-A (L=2m)
XS2F-D422-G80-A (L=5m)
XS2F-D422-J80-A (L=10m)
XS2F-D422-C80-R (L=1m)
XS2F-D422-D80-R (L=2m)
XS2F-D422-G80-R (L=5m)
XS2F-D422-J80-R (L=10m)
XS2F

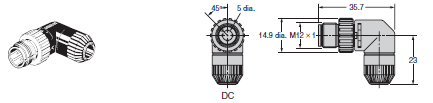

Connector Plug Assemblies, Solder Type
XS2G-D425
XS2G
XS2G-D426
XS2G

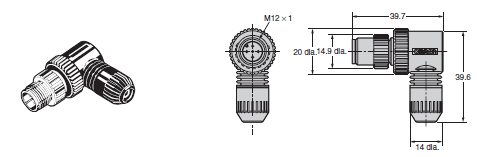

Connector Plug Assemblies, Screw-on Type
XS2G-D4S5
XS2G
XS2G-D4S6
XS2G

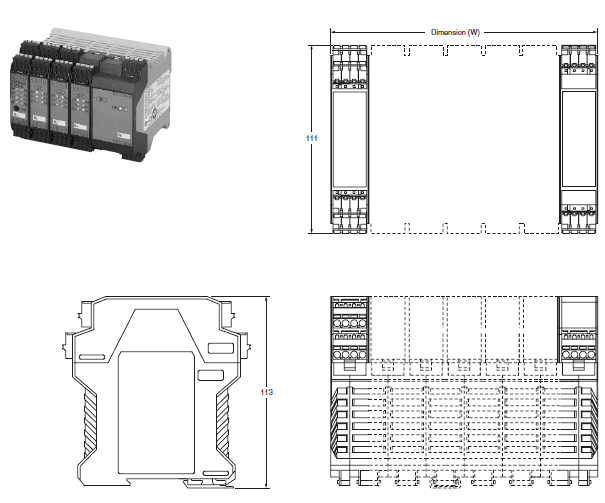

Controller
F3SX
F3SX
Note: Refer to "Lineup" on Controller for demension details.




-----------------------------------------------------------------------------------------------------------
